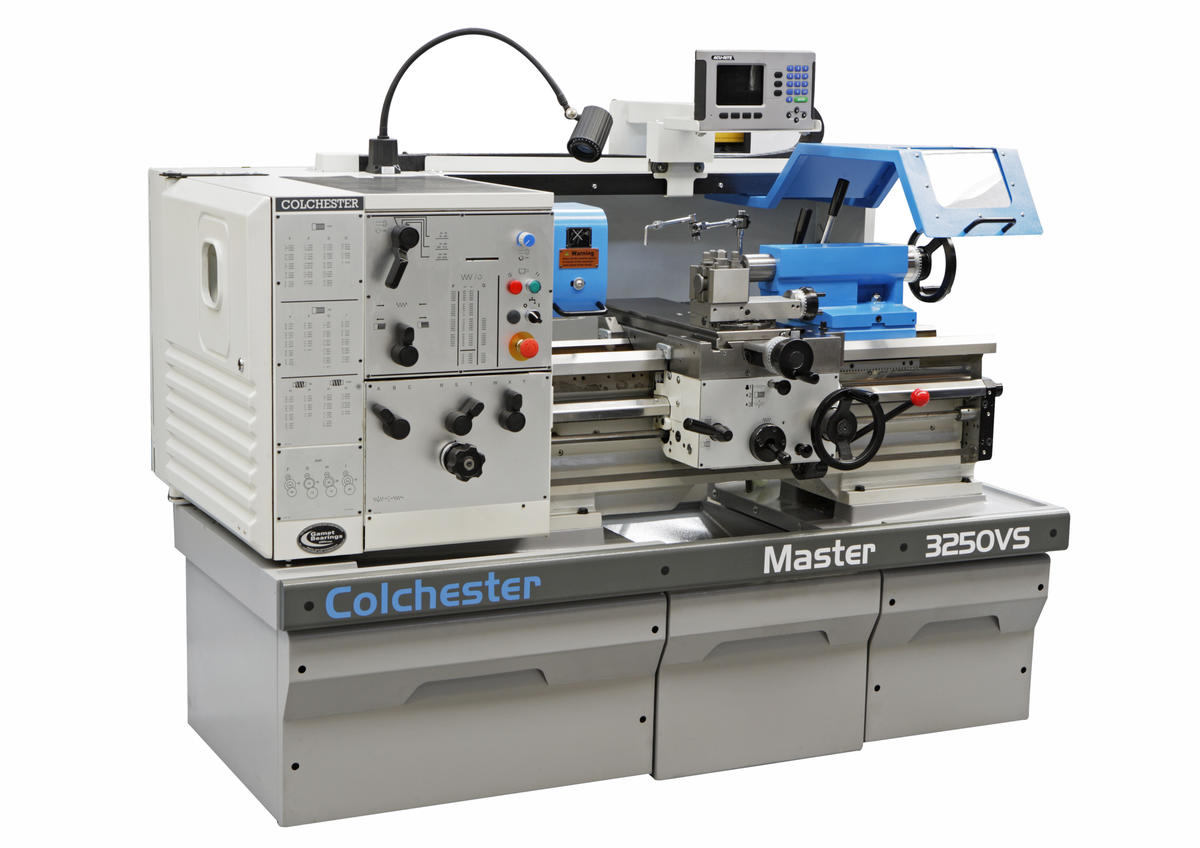

Colchester Master VS

Code: COL006

Height of Centres: 170mm
Bed Length Between Centre: 650mm
Swing over Bed: 350mm
Swing in Gap: 535mm
Swing over Cross Slide: 196mm
Spindle Bore: 42mm
Spindle Nose mounting: D1-4 Camlock
Morse Taper in Nose Bush: No. 3 MT
Number of speed ranges: 3 variable
Range: 17 - 3250 rpm
Motor: 7.5 kw
Number of metric pitches: 51
Range of metric pitches: 0.2 to 14mm
Number of Imperial Pitches: 56
Range of imperial pitches: 2 to 56 TPI
Number of Diametral Pitches: 20
Range of Diametral Pitches: 8 to 56 DP
Number of Module pitches: 20
Range of Module pitches: 0.2 to 3.5 MOD
Width of Bedways: 318mm
Travel of Cross Slide: 250mm
Travel of Top Slide: 100mm
Tailstock Travel: 145mm
Taper in Tailstock Barrel: No. 4 MT
