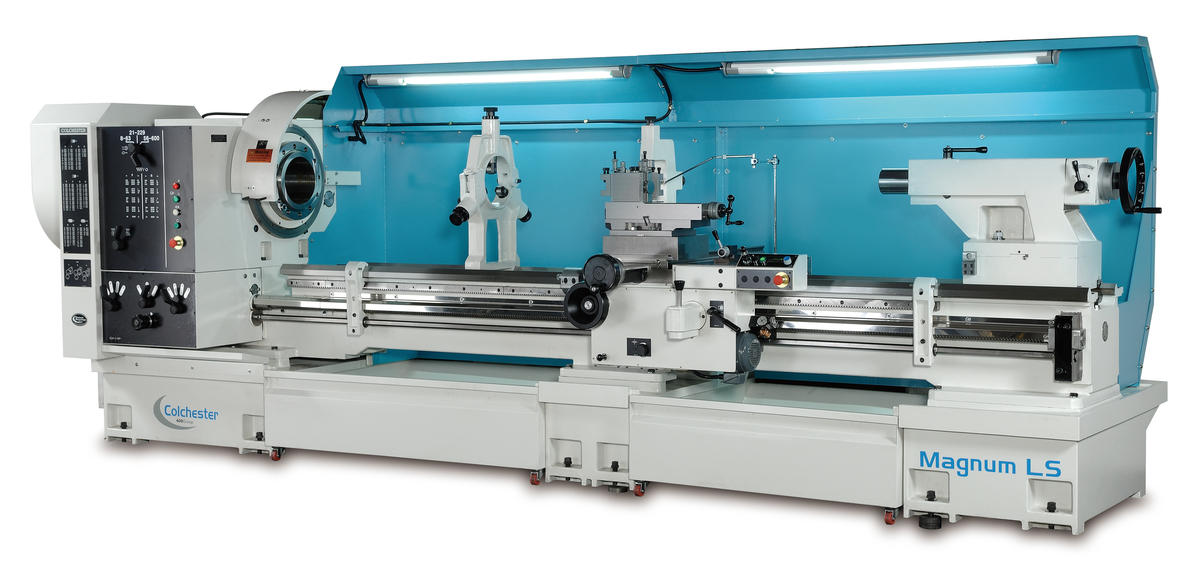

Colchester Magnum LS

Code: COL004

Height of Centres: 412mm
Bed Length Between Centre: 1000/1500/2000/3000/5000/6000mm
Swing over Bed: 820mm
Swing in Gap: 1060mm
Swing over Cross Slide: 580mm
Spindle Bore: 104 / 155 / 230mm
Spindle Nose mounting: D1-11 / A2-11 / A2-15
Morse Taper in Nose Bush: No. 6 MT
Number of speed ranges: 3 variable
Range: 8 - 1800 / 1000 / 600 rpm
Motor: 20 kw
Number of metric pitches: 59
Range of metric pitches: 0.2 to 14mm
Number of Imperial Pitches: 51
Range of imperial pitches: 2 to 84 TPI
Number of Diametral Pitches: 27
Range of Diametral Pitches: 8 to 72 DP
Number of Module pitches: 20
Range of Module pitches: 0.2 to 3.5 MOD
Width of Bedways: 480mm
Travel of Cross Slide: 406mm
Travel of Top Slide: 165mm
Tailstock Travel: 300mm
Taper in Tailstock Barrel: No. 6 MT
