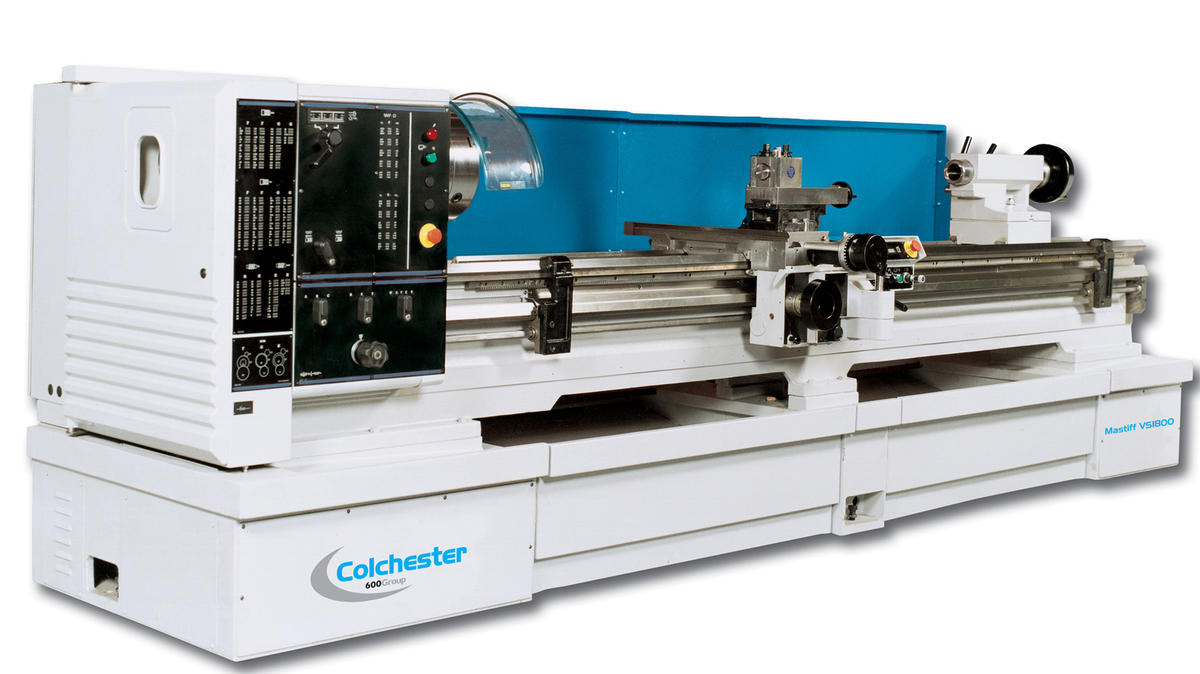

Colchester Mastiff VS

Code: COL002

Height of Centres: 280mm
Bed Length Between Centre: 1000/1500/2000/3000MM
Swing over Bed: 554mm
Swing in Gap: 830mm
Swing over Cross Slide: 370mm
Spindle Bore: 104mm
Spindle Nose mounting: D1-11 Camlock
Morse Taper in Nose Bush: No. 5 MT
Number of speed ranges: 3 variable
Range: 18 - 1800 rpm
Motor: 11 kw
Number of metric pitches: 66
Range of metric pitches: 0.2 to 14mm
Number of Imperial Pitches: 73
Range of imperial pitches: 2 to 84 TPI
Number of Diametral Pitches: 27
Range of Diametral Pitches: 8 to 72 DP
Number of Module pitches: 20
Range of Module pitches: 0.2 to 3.5 MOD
Width of Bedways: 400mm
Travel of Cross Slide: 300mm
Travel of Top Slide: 175mm
Tailstock Travel: 178mm
Taper in Tailstock Barrel: No. 6 MT
