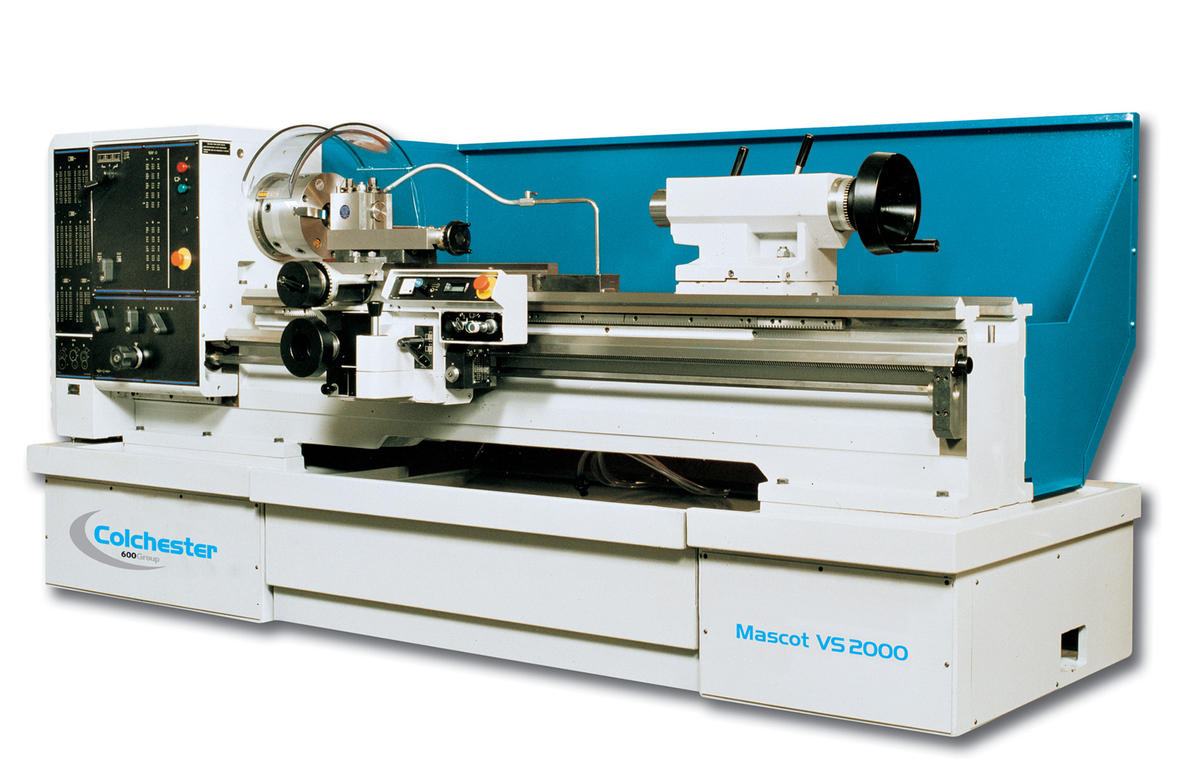

Colchester Mascot VS

Code: COL001

Height of Centres: 230mm

Bed Length Between Centre: 1000/1500/2000mm

Swing over Bed: 460mm

Swing in Gap: 730mm

Swing over Cross Slide: 270mm

Spindle Bore: 76mm

Spindle Nose mounting: D1-8 Camlock

Morse Taper in Nose Bush: No. 5 MT

Number of speed ranges: 3 variable

Range: 20 - 2000 rpm

Motor: 11 kw

Number of metric pitches: 66

Range of metric pitches: 0.2 to 14mm

Number of Imperial Pitches: 73

Range of imperial pitches: 2 to 84 TPI

Number of Diametral Pitches: 27

Range of Diametral Pitches: 8 to 72 DP

Number of Module pitches: 20

Range of Module pitches: 0.2 to 3.5 MOD

Width of Bedways: 400mm

Travel of Cross Slide: 300mm

Travel of Top Slide: 150mm

Tailstock Travel: 110mm

Taper in Tailstock Barrel: No.  6 MT
