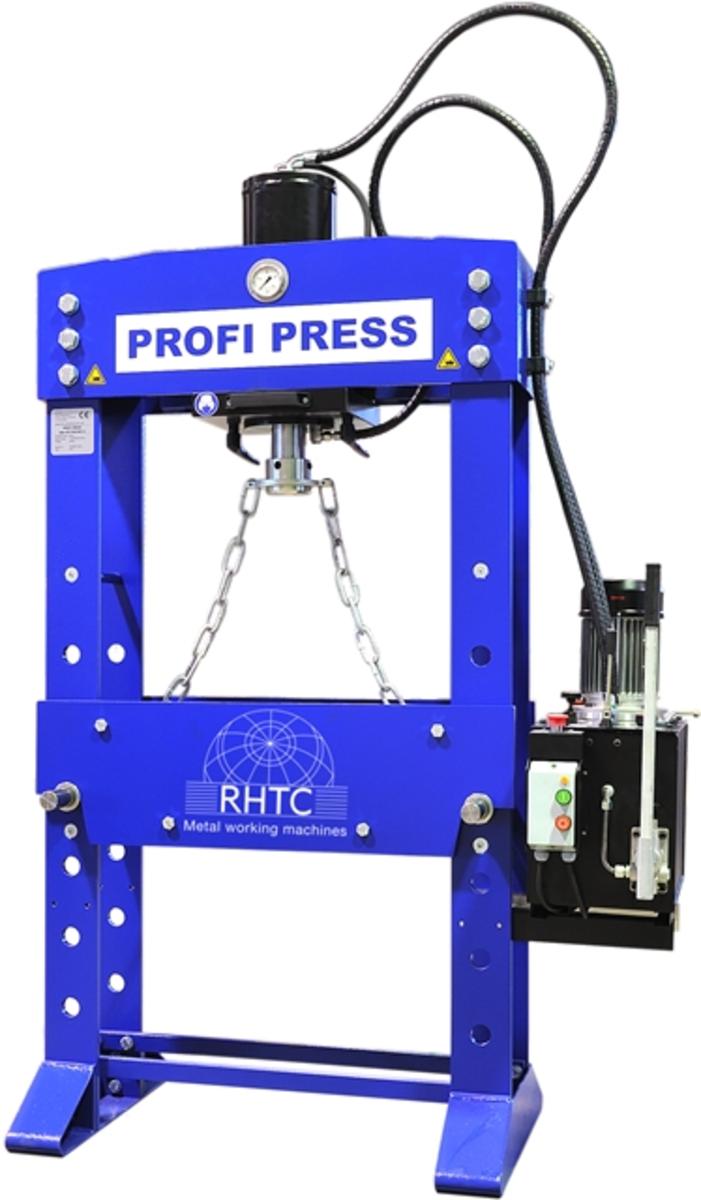

NEW Motorized 60 Ton Workshop Press

Code: ST2542

Pressure Force (KN) 588
Maximum Pressure (Bar) 259
Piston Stroke (mm) 380
Oil Delivery (Ltr/Min) 2.82 / 11.84
Oil Capacity(Dm3) 41
Working Speeds (mm/sec) 2.07
Approaching Speed (mm/sec) 8.69
Return Speed (mm/sec) 10.79
Motor Power (kw) 1.5
Voltage 400/3
Frequency (Hz) 50/60
Insulation Protection (IP) 54
Isolation Classification I
Movable Cylinder YES
Speeds 2
Working Width (mm) 750
Weight (Kg) 540
Dia Of Cylinder (mm) 170
Dia Of Piston Rod (mm) 75
Dia Of Piston Head (mm) 100

If you would like to make an enquiry about the NEW Motorized 60 Ton Workshop Press , please use the form below or you can contact us by telephone:
