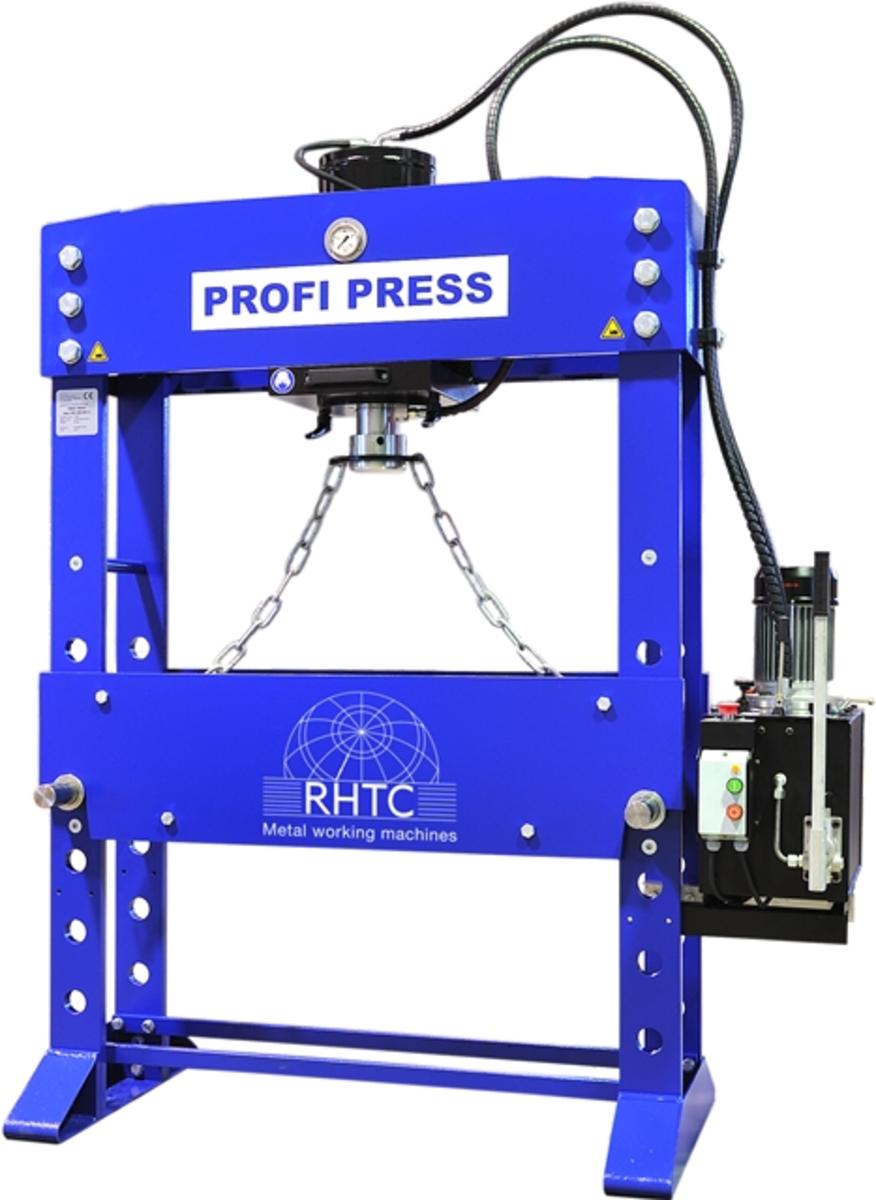

NEW Motorized 100 Ton Workshop Press

Code: ST2543

Pressure Force (KN) 981
Maximum Pressure (Bar) 258
Piston Stroke (mm) 380
Oil Delivery (Ltr/Min) 5.64/17.2
Oil Capacity(Dm3) 46
Working Speeds (mm/sec) 2.47
Approaching Speed (mm/sec) 7.54
Return Speed (mm/sec) 9.06
Motor Power (kw) 2.2
Voltage 400/3
Frequency (Hz) 50/60
Revolutions Per Minute 3000
Insulation Protection (IP) 54
Isolation Classification I
Movable Cylinder YES
Speeds 2
Working Width (mm) 1100
Weight (Kg) 970
Dia Of Cylinder (mm) 220
Dia Of Piston Rod (mm) 90
Dia Of Piston Head (mm) 120
