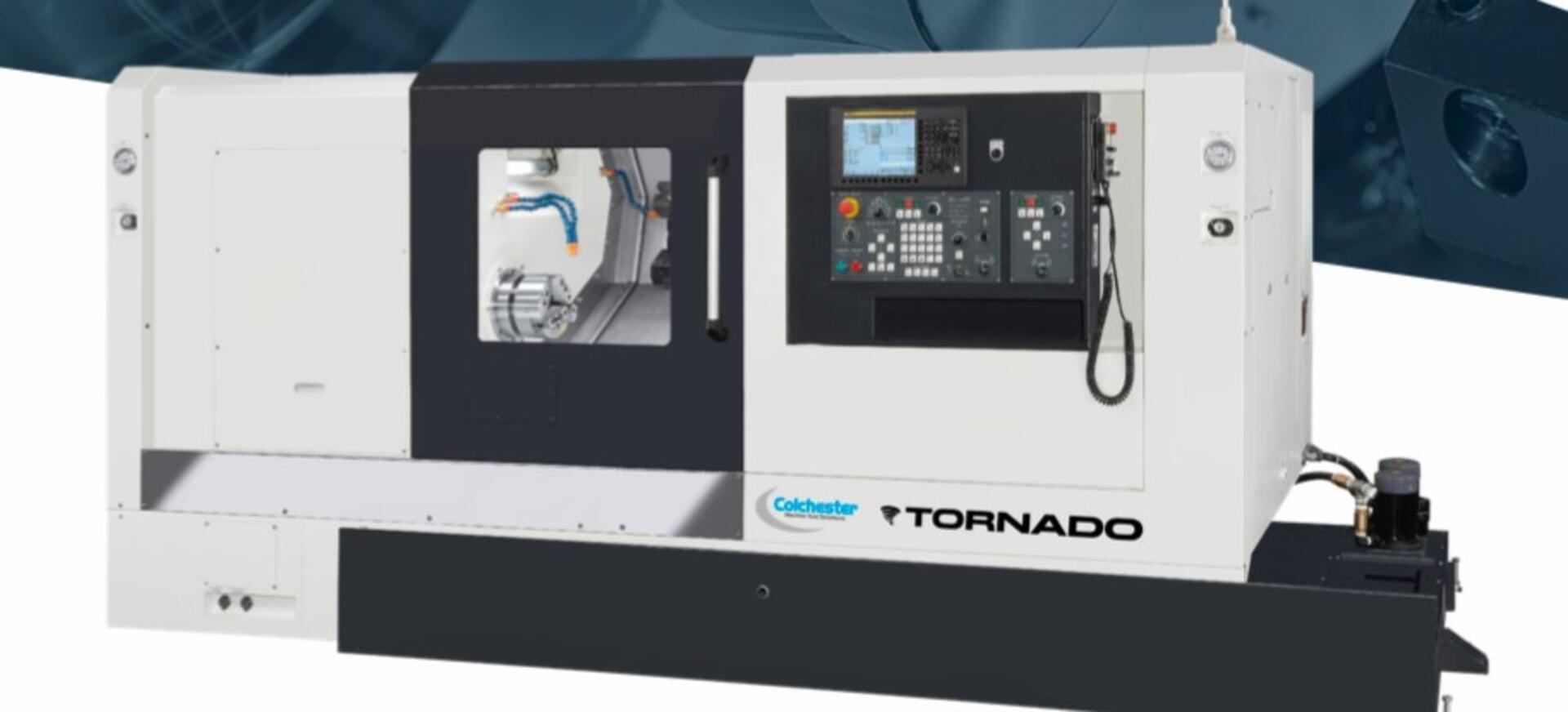

Colchester Tornado SL40MC (SL40LMC) CNC Turning Centre

Code: TORSL40MC

Tornado SL40MC / SL40LMC



Machine Specification

Control Fanuc Oi-TF Plus with Manual Guide i 15” Screen

Capacity

Guideway Roller
Swing over Bed 750mm
Swing over Saddle 550mm
Max Turning Diameter 550mm
Max Working length 830mm (1380mm on SL40LMC)
Bar Capacity 103mm
Chuck Size 380mm (15”) (457mm 18” Option)

Feedrate

Rapid Traverse X/Z 36m/min
Cutting Feed X/Z 10m/min

Spindle

Spindle Speed 3500rpm
Spindle nose A2-8
Spindle Power 30/37Kw with Gear Box

Turret

Type (12 Station) BMT 65
Live Tool Speed 4000rpm
Live Tool Power 5.5 / 7Kw
Tool Dimension 25x25mm
Boring Bar 40mm

C Axis

Minimum Programmable increment 0.001Deg

Tailstock

Type Programmable
Body Stroke 900mm (1450mm on SL40LMC)
Quill Stroke 100mm
Taper MT5

Positioning

Positioning 0.01mm
Repeatability +/- 0.003mm

Machine

Power Requirements 35Kva
Machine Size including Swarf Conveyor (LxW) 5320 x 2230 (6040x2230 on SL40LMC)
Weight 6700Kgs (7700Kgs on SL40LMC)

Standard Accessories

Fanuc Oi-TF control with 15” Screen and Manual Guide i
Swarf Conveyor and Cart
Status Light
Foot Switch for Chuck
Auto Lubrication
Heat Exchanger
Transformer
380mm Power Chuck
Parts Catcher
Renishaw manual Tool Setter
20 Bar Coolant
Maintenance and Operation Manual
