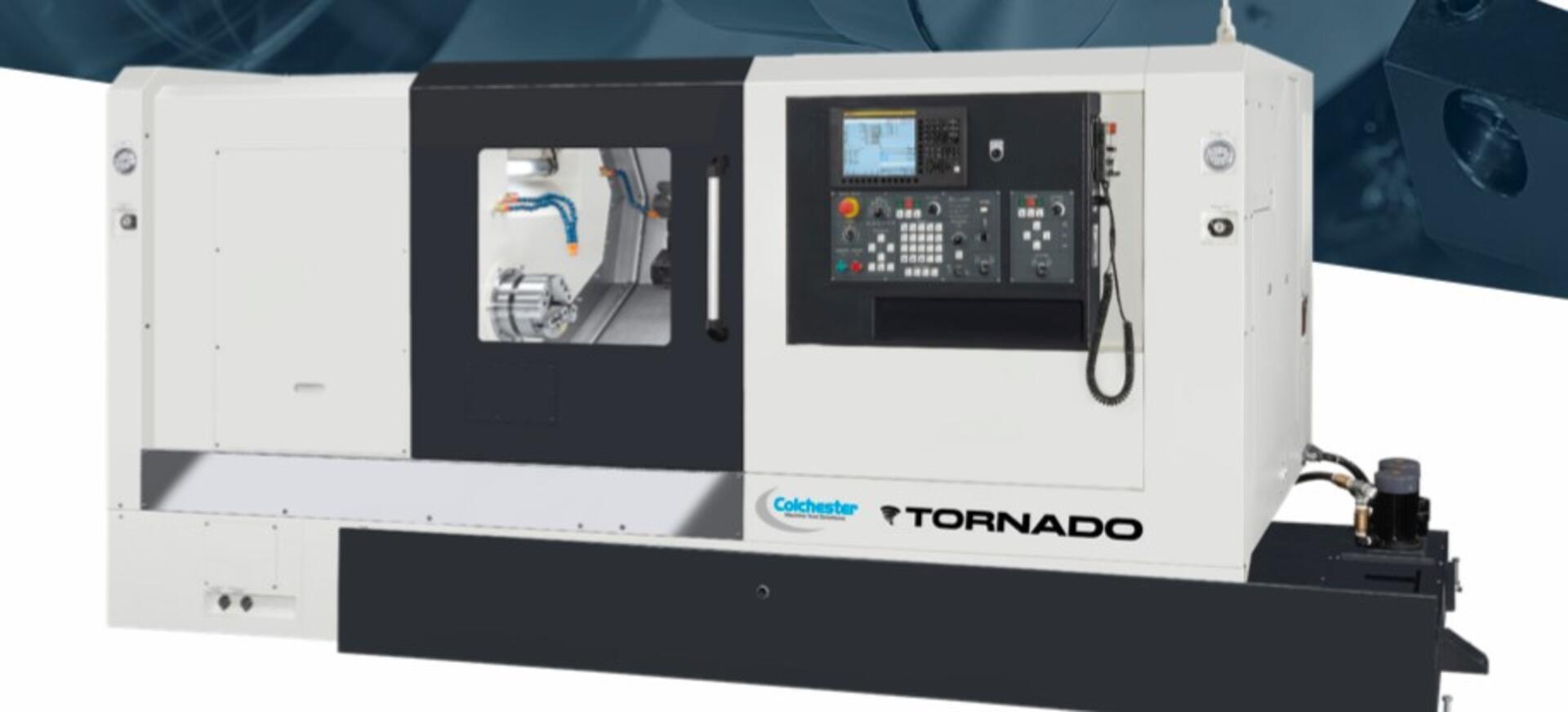

Colchester Tornado SL30MC (SL30LMC) Turning Centre

Code: TORSL30MC

Tornado SL30MC / SL30LMC

Machine Specification

Control Fanuc Oi-TF Plus with Manual Guide i 15” Screen

Capacity

Guideway Roller
Swing over Bed 600mm
Swing over Saddle 400mm
Max Turning Diameter 330mm
Max Working length 540mm (940mm on SL30LMC)
Bar Capacity 65mm
Chuck Size 200mm (8”) (250mm Option)

Feedrate

Rapid Traverse X/Z 36m/min
Cutting Feed X/Z 10m/min

Spindle

Spindle Speed 4500rpm
Spindle nose A2-6
Spindle Power 11/15Kw

Turret

Type (12 Station) VDi 40
Live Tool Drive Din 5480
Live Tool Speed 4000rpm
Live Tool Power 5.5Kw
Tool Dimension 25x25mm
Boring Bar 40mm

C Axis

Minimum Programmable increment 0.001Deg

Tailstock

Type Programmable
Body Stroke 570mm (970mm on SL30LMC)
Quill Stroke 100mm
Taper MT4

Positioning

Positioning 0.01mm
Repeatability +/- 0.003mm

Machine

Power Requirements 30Kva
Machine Size including Swarf Conveyor (LxW) 4277 x 1745 (4677x1745 on SL30LMC)
Weight 5600Kgs#

Standard Accessories

Fanuc Oi-TF control with 15” Screen and Manual Guide i
Swarf Conveyor and Cart
Status Light
Foot Switch for Chuck
Auto Lubrication
Heat Exchanger
Transformer
200mm Power Chuck
Parts Catcher
Renishaw manual Tool Setter
20 Bar Coolant
Maintenance and Operation Manual
