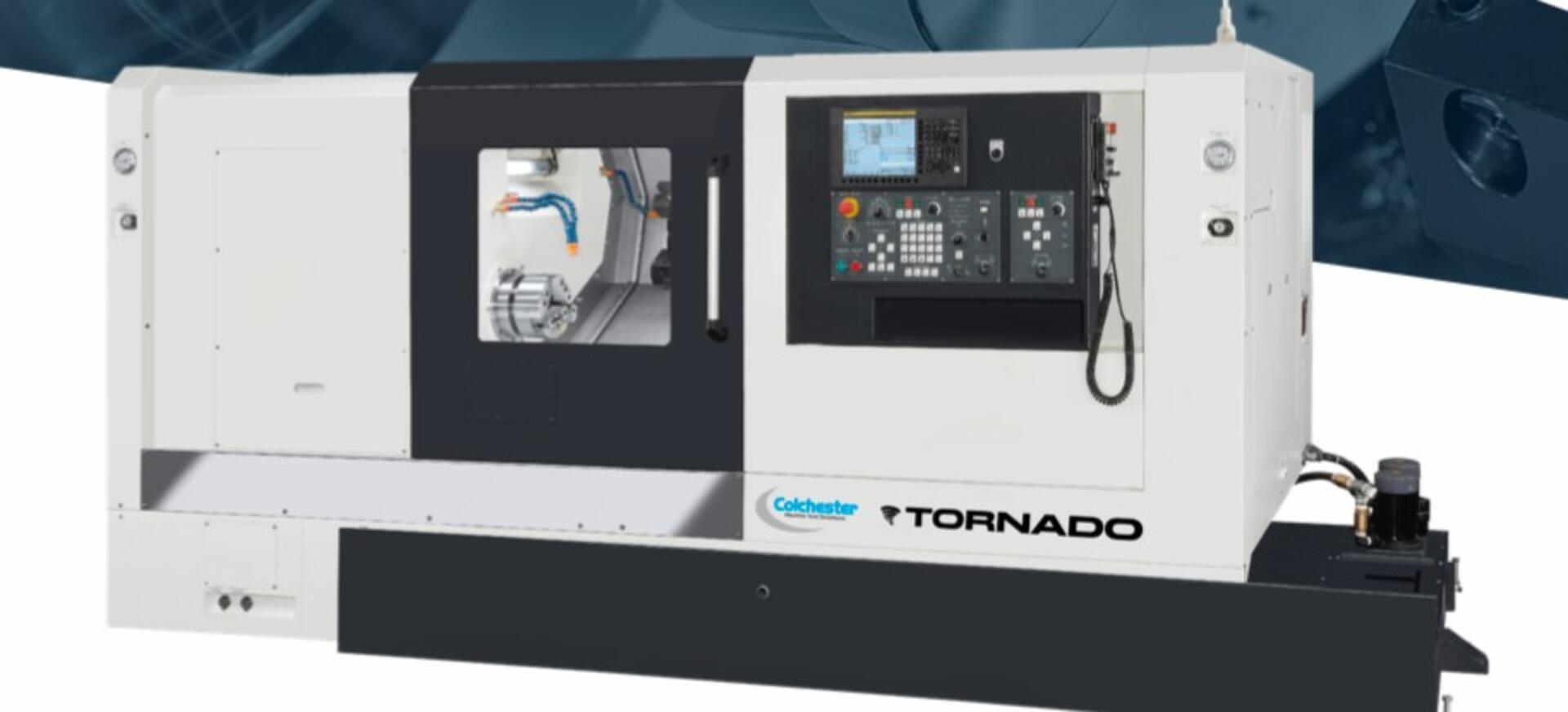

Colchester Tornado SL35 (SL35L) CNC Turning Centre

Code: TORSL35

Tornado SL35 / SL35L

Machine Specification

Control Fanuc Oi-TF Plus with Manual Guide I 15” Screen

Capacity

Guideway Roller
Swing over Bed 660mm
Swing over Saddle 450mm
Max Turning Diameter 450mm
Max Working length 600mm (1000mm on SL35L)
Bar Capacity 78mm
Chuck Size 250mm (10”)

Feedrate

Rapid Traverse X/Z 36m/min
Cutting Feed X/Z 10m/min

Spindle

Spindle Speed 3500rpm
Spindle nose A2-8
Spindle Power 15/18.5Kw

Turret

Type (12 Station) VDi 40
Tool Dimension 25x25mm
Boring Bar 40mm

Tailstock

Type Programmable
Body Stroke 570mm
Quill Stroke 100mm
Taper MT4

Positioning

Positioning 0.01mm
Repeatability +/- 0.003mm

Machine

Power Requirements 30Kva
Machine Size including Swarf Conveyor (LxW) 4472x1745 (4879 x 1745 SL35L)
Weight 5600Kgs (6500Kgs on SL35L)

Standard Accessories

Fanuc Oi-TF control with 15” Screen and Manual Guide i
Swarf Conveyor and Cart
Status Light
Foot Switch for Chuck
Auto Lubrication
Heat Exchanger
Transformer
250mm Power Chuck
Parts Catcher
Renishaw manual Tool Setter
20 Bar Coolant
Maintenance and Operation Manual
