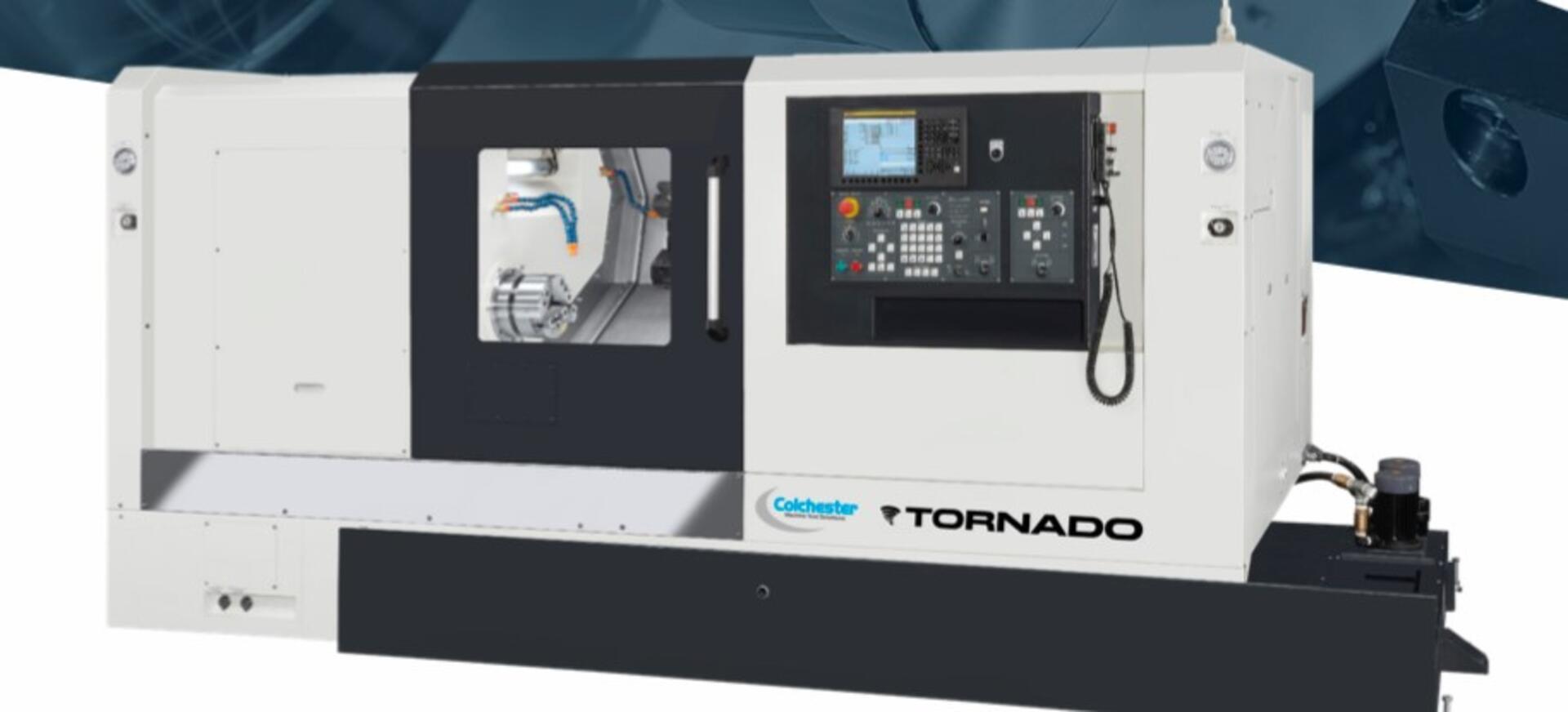

Colchester Tornado SL25 CNC Turning Centre

Code: TORSL25

Tornado SL25


Machine Specification

Control Fanuc Oi-TF Plus with Manual Guide i 15” Screen


Guideway Roller
Swing over Bed 530mm
Swing over Saddle 350mm
Max Turning Diameter 350mm
Max Working length 400mm
Bar Capacity 52mm
Chuck Size 200mm (8”)


Rapid Traverse X/Z 36m/min
Cutting Feed X/Z 10m/min


Spindle Speed 5000rpm
Spindle nose A2-6
Spindle Power 11Kw


Type (12 Station) VDi 30
Tool Dimension 20x20mm
Boring Bar 32mm


Type Manual
Body Stroke 410mm
Quill Stroke 100mm
Taper MT4


Positioning 0.01mm
Repeatability +/- 0.003mm


Power Requirements 25Kva
Machine Size including Swarf Conveyor (LxW) 3540 x 1500
Weight 4000Kgs

Standard Accessories

Fanuc Oi-TF Plus control with 15.” Touch Screen and Manual Guide i
Swarf Conveyor and Cart
Status Light
Foot Switch for Chuck
Auto Lubrication
Heat Exchanger
200mm Power Chuck
Parts Catcher
Renishaw manual Tool Setter
20 Bar Coolant
Maintenance and Operation Manual
