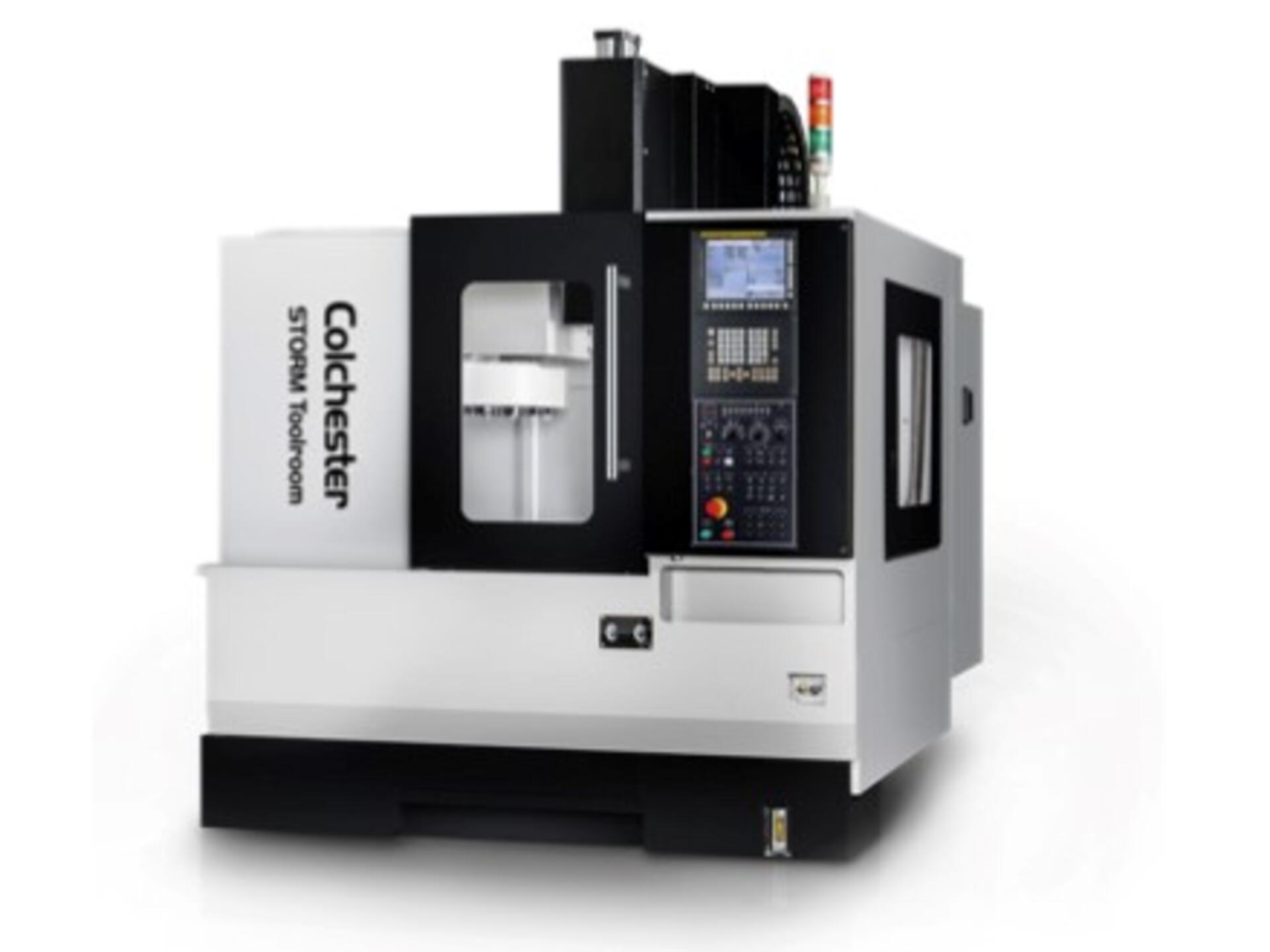

Colchester Storm EH610 Toolroom Economic Machining Centre

Code: EH-610

Storm EH610

Machine Specification

Control Fanuc Oi-MF with Manual Guide i
Siemens 828D with ShopMill


X, Y, Z (mm) 610 x 350 x 460
Spindle nose to Table (mm) 70-530


Working Area (mm) 710 x 350
Max Load (kg) 350
T-Slots (No. x Width x Pitch) 5 x 16 x 63


Spindle Taper BT40
Speed (rpm) 10,000 Belt Drive with Oil Cooler
Spindle Motor (Kw) Fanuc (7.5/11Kw)
Siemens (7 / 8.4Kw)

Feed Rates

Rapid Traverse X, Y, Z (m/min) 15
Max Cutting Feedrate (m/min) 10

Tool magazine

ATC 20 Station Twin Arm
Type BT40
Max Tool Diameter (mm) 100
Max Tool Weight (kg) 7
Max Tool Length (mm) 250


Net Weight (Kg) 2600
Power Requirement (Kva) 12
Floor Space (L x W x H) 1960 x 1730 x 2300mm

Standard Accessories

Screw Type Chip Auger and Cart
Spindle Air Blast
Coolant and Air Gun
Heat Exchanger
Spindle Oil Cooler
LED Light
Coolant System
Cycle Indicator Light
Levelling Pads
4th Axis Preparation (Wiring and Connectors only)
