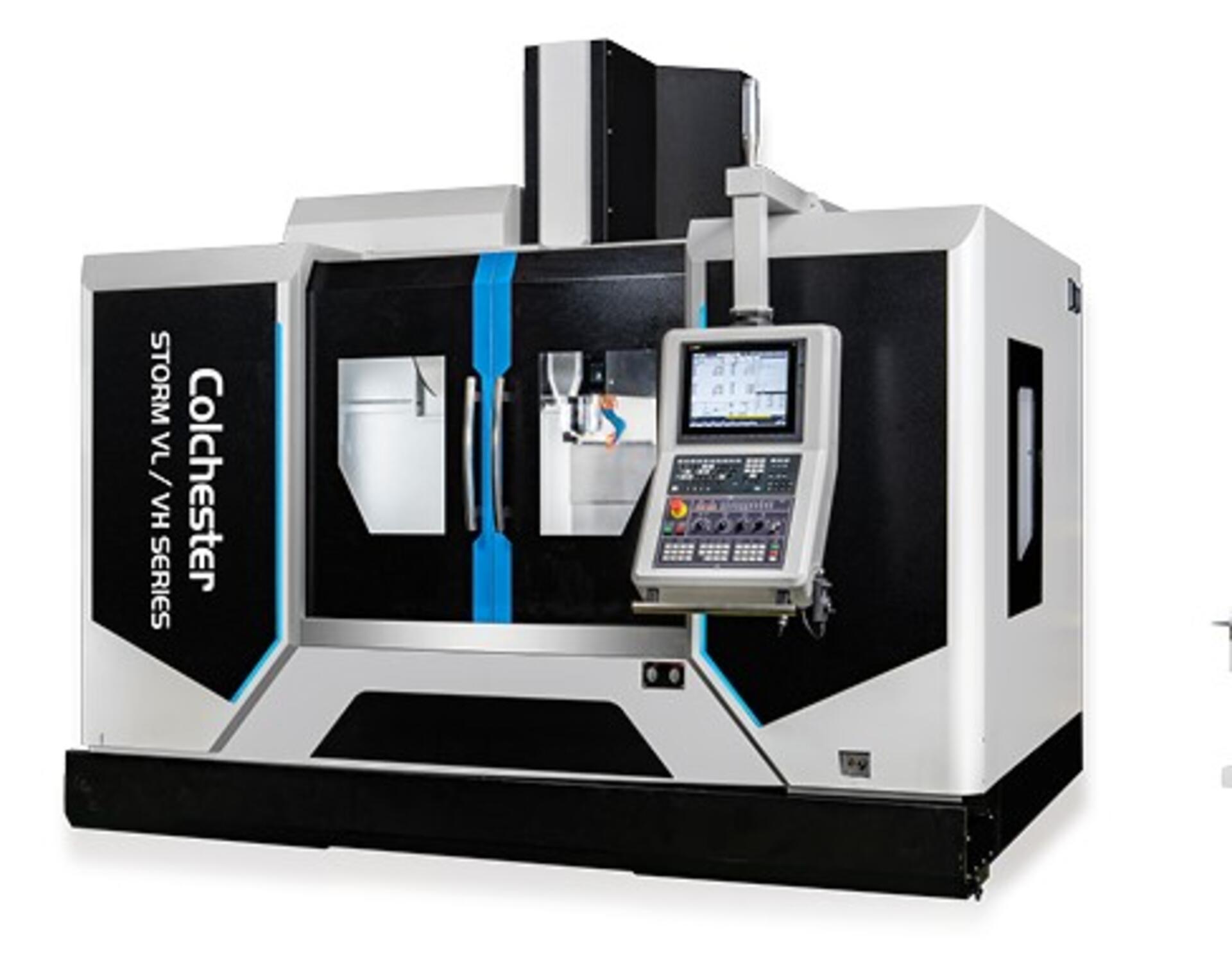

Colchester Storm VL2090 Vertical Machining Centres

Code: VL2090

Storm VL2090

Machine Specification

Control Fanuc Oi-MF with Manual Guide i
Siemens 828D with ShopMill

Travels

X, Y, Z (mm) 2000 x 900 x 850
Spindle nose to Table (mm) 150-1000

Table

Working Area (mm) 1200 x 850
Max Load (kg) 2000
T-Slots (No. x Width x Pitch) 5 x 22 x 150

Spindle

Spindle Taper BT40
Speed (rpm) 10,000 Belt Drive with Oil Cooler
Spindle Motor (Kw) Fanuc (15Kw)
Siemens (11Kw)

Feed Rates

Rapid Traverse X, Y, Z (m/min) 15, 15, 12

Max Cutting Feedrate (m/min) 10

Tool magazine

ATC 24 Station Twin Arm
Type BT40
Max Tool Diameter (mm) 80
Max Tool Weight (kg) 7
Max Tool Length (mm) 300

Dimensions

Net Weight (Kg) 17390Kgs
Power Requirement (Kva) 25
Floor Space (L x W x H) 5130 x 4340 x 3486mm

Standard Accessories

Screw Type Chip Auger and Cart
Spindle Air Blast
Coolant and Air Gun
Heat Exchanger
Spindle Oil Cooler
Portable MPG
LED Light
Coolant System
Cycle Indicator Light
Levelling Pads
CE
4th Axis Preparation
