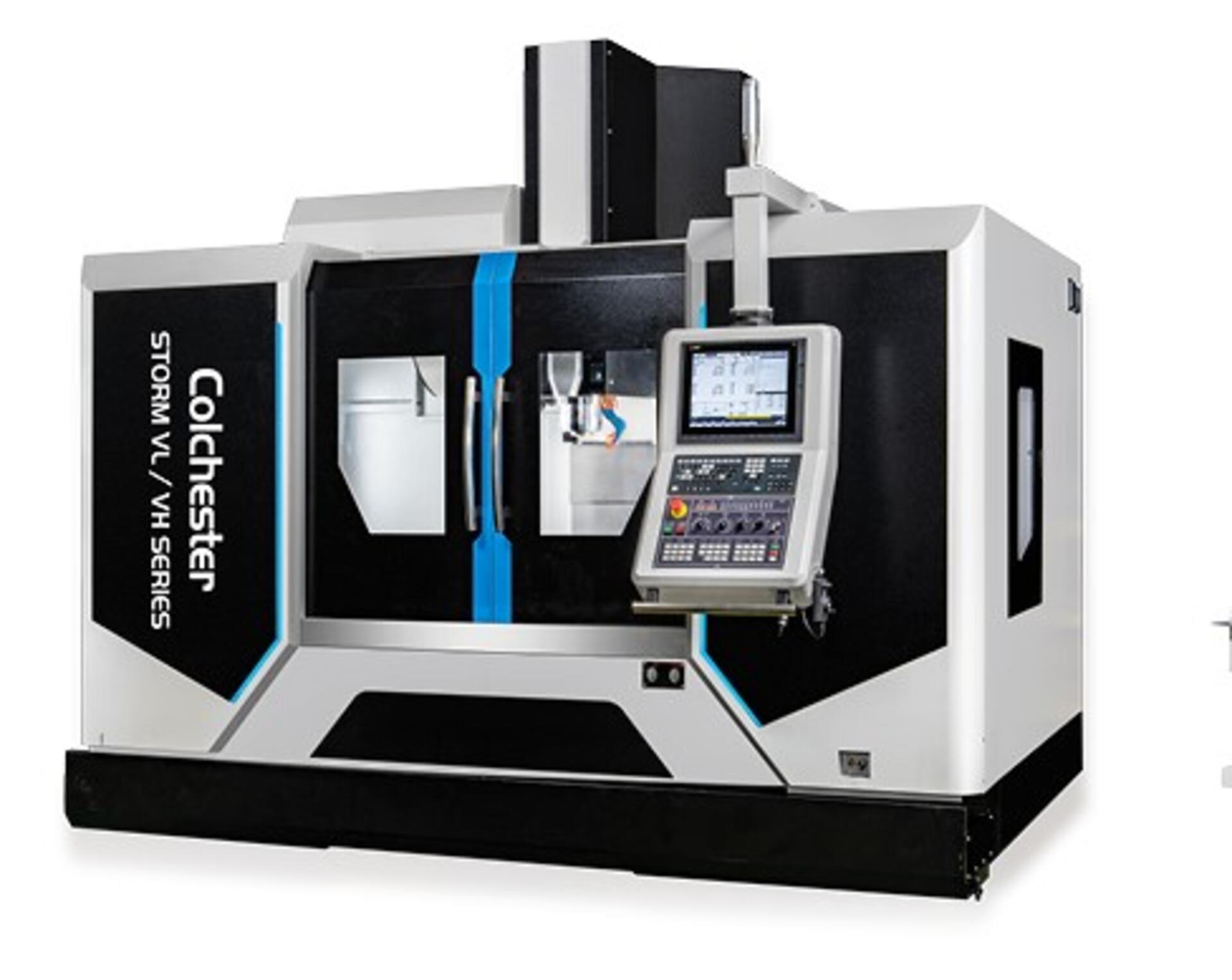

Colchester Storm VL1300 Vertical Machining Centre

Code: VL1300

Storm VL1300

Machine Specification

Control Fanuc Oi-MF with Manual Guide i
Siemens 828D with ShopMill


X, Y, Z (mm) 1300 x 700 x 700
Spindle nose to Table (mm) 130-850


Working Area (mm) 1450 x 700
Max Load (kg) 1500
T-Slots (No. x Width x Pitch) 5 x 18 x 125


Spindle Taper BT40
Speed (rpm) 10,000 Belt Drive with Oil Cooler
Spindle Motor (Kw) Fanuc (7.5/11Kw)
Siemens (11Kw)

Feed Rates

Rapid Traverse X, Y, Z (m/min) 30, 30, 24
Max Cutting Feedrate (m/min) 10

Tool magazine

ATC 24 Station Twin Arm
Type BT40
Max Tool Diameter (mm) 80
Max Tool Weight (kg) 7
Max Tool Length (mm) 300


Net Weight (Kg) 8510
Power Requirement (Kva) 20
Floor Space (L x W x H) 3730 x 3240 x 3238mm

Standard Accessories

Screw Type Chip Auger and Cart
Spindle Air Blast
Coolant and Air Gun
Heat Exchanger
Spindle Oil Cooler
Portable MPG
LED Light
Coolant System
Cycle Indicator Light
Levelling Pads
4th Axis Preparation
