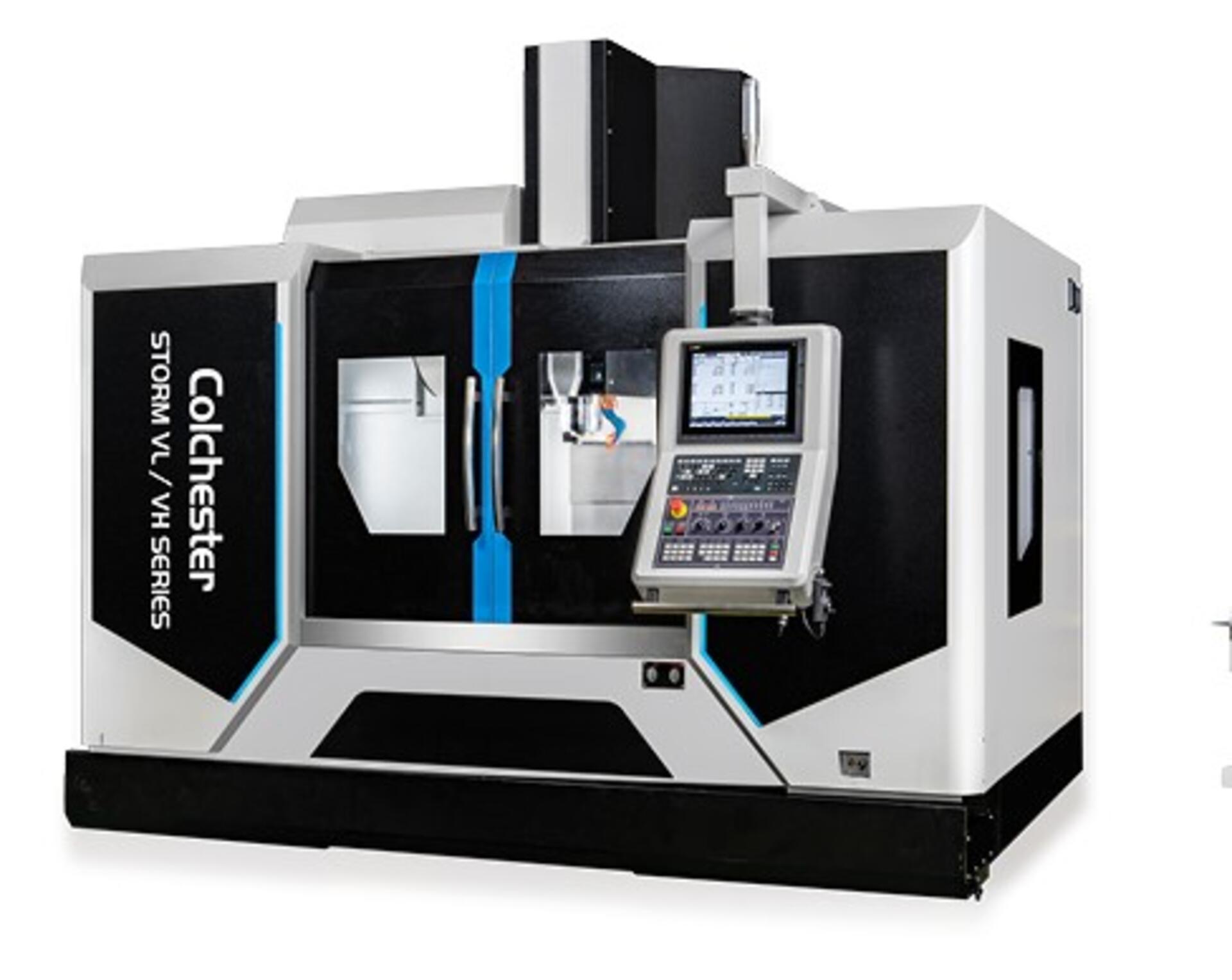

Colchester Storm VL610 Vertical Machining Centre

Code: VL610

Storm VL610

Machine Specification

Control Fanuc Oi-MF with Manual Guide i
Siemens 828D with ShopMill

Travels

X, Y, Z (mm) 610 x 460 x 510
Spindle nose to Table (mm) 125-630

Table

Working Area (mm) 800 x 450
Max Load (kg) 400
T-Slots (No. x Width x Pitch) 3 x 18 x 100

Spindle

Spindle Taper BT40
Speed (rpm) 10,000 Belt Drive with Oil Cooler
Spindle Motor (Kw) Fanuc (7.5/11Kw)
Siemens (7 / 8.4Kw)

Feed Rates

Rapid Traverse X, Y, Z (m/min) 36
Max Cutting Feedrate (m/min) 10

Tool magazine

ATC 24 Station Twin Arm
Type BT40
Max Tool Diameter (mm) 100
Max Tool Weight (kg) 6
Max Tool Length (mm) 250

Dimensions

Net Weight (Kg) 4000
Power Requirement (Kva) 15
Floor Space (L x W x H) 2240 x 2580 x 2909mm

Standard Accessories

Screw Type Chip Auger and Cart
Spindle Air Blast
Coolant and Air Gun
Heat Exchanger
Spindle Oil Cooler
Portable MPG
LED Light
Coolant System
Cycle Indicator Light
Levelling Pads
CE
4th Axis Preparation
